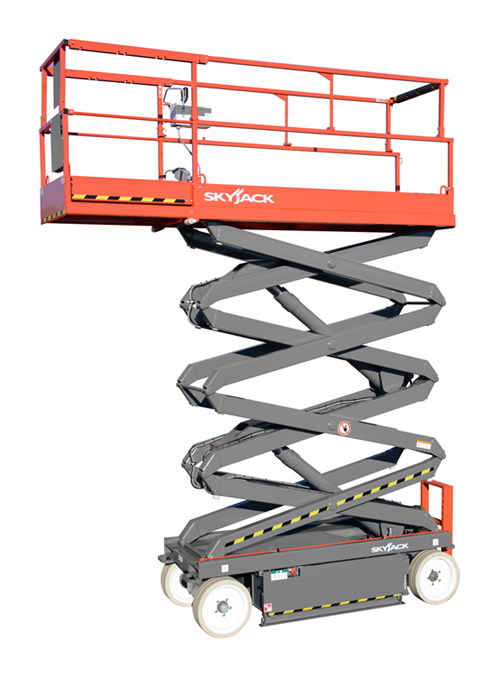

SJ3220 Scissor Lift – Skyjack™

The SJIII 3220 offers Skyjack’s easy to service, low maintenance design in a versatile package, making it suitable for any on-slab application. The lightest machine in its class, the SJIII 3220 boasts an industry leading 900 lb capacity and its narrow design makes it easy to maneuver through standard doorways.

Featuring a working height of 26’, variable speed rear wheel hydraulic drive, and 25% gradeability, it also offers a standard 3’ roll out extension deck, and can be driven at full height. Consistent with Skyjack’s robust and reliable design features, the SJIII 3220 utilizes Skyjack’s standard color coded and numbered wiring system with analog based controls.



skyjack logo

More Information

Skyjack sj3220/sj3226

Specifications

Work Height26’ (7.9 m)
Raised Platform Height20’ (6.1 m)
Lowered Platform Height38” (1.0 m)
Overall Width32” (0.8 m)
Overall Length91.5” (2.3 m)
Stowed Height (Rails Up)77.5” (2.0 m)
Stowed Height (Rails Down)OPT 63.5” (1.6 m)
Platform Width (Inside Dimension)28” (0.7 m)
Platform Length (Inside Dimension)84” (2.1 m)
Extension Deck (Roll Out)3’ (0.9 m)
Wheelbase69” (1.8 m)
Ground Clearance (Stowed)3.5” (8.9 cm)
Ground Clearance (raised)0.75” (1.9 cm)
Weight3,510 lbs (1,592 kg)
Gradeability30%
Turning Radius (Inside)50” (1.3 m)
Turning Radius – Outside108” (2.7 m)
Lift Time (With Rated Load)33 sec
Drive Speed (Stowed)2 mph (3.2 km/h)
Drive Speed (Raised)0.7 mph (1.1 km/h)
Maximum Drive HeightFull Height
Capacity (Overall)900 lbs (408 kg)
Maximum # of Persons2
