SJ3219 Scissor Lift – Skyjack™

Consistent with Skyjack’s robust and reliable design features, the SJIII 3219 offers an easy to service, low maintenance design in a compact and versatile package. Featuring a 3’ roll out extension deck, a working height of 25’ and 25% gradeability, the SJIII 3219 boasts an industry leading capacity of 550 lbs. Equipped with variable speed front wheel hydraulic drive and 90° steering, it is capable of maneuvering in the smallest spaces.

The SJIII 3219 features durable steel swing-out component trays, providing unrestricted access for easy maintenance and service. Utilizing Skyjack’s standard color coded and numbered wiring system with analog based controls ensures the SJIII 3219 will maintain its industry leading life cycle value.





skyjack logo

More Information

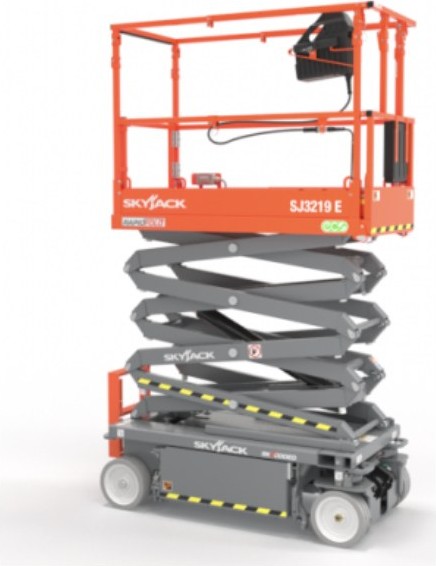

Skyjack sj3219 scissor lift

Specifications

Work Height 25’ (7.6 m)
Raised Platform Height 19’ (5.8 m)
Lowered Platform Height 39” (1.0 m)
Overall Width 32” (0.8 m)
Overall Length 70” (1.8 m)
Stowed Height (Rails Up) 78.5” (2.0 m)
Stowed Height (Rails Down) OPT 64.5” (1.6 m)
Platform Width (Inside Dimension) 26” (0.7 m)
Platform Length (Inside Dimension) 64” (1.6 m)
Extension Deck (Roll Out) 3’ (0.9 m)
Wheelbase 55” (1.4 m)
Ground Clearance (Stowed) 2.375” (6.0 cm)
Ground Clearance (raised) 0.7” (1.8 cm)
Weight 2,580 lbs (1,170 kg)
Gradeability 30%
Turning Radius (Inside) 0”
Turning Radius – Outside 66” (1.7 m)
Lift Time (With Rated Load) 25 sec
Drive Speed (Stowed) 2 mph (3.2 km/h)
Drive Speed (Raised) 0.7 mph (1.1 km/h)
Maximum Drive Height Full Height
Capacity (Overall) 550 lbs (249 kg)
Maximum # of Persons 2
