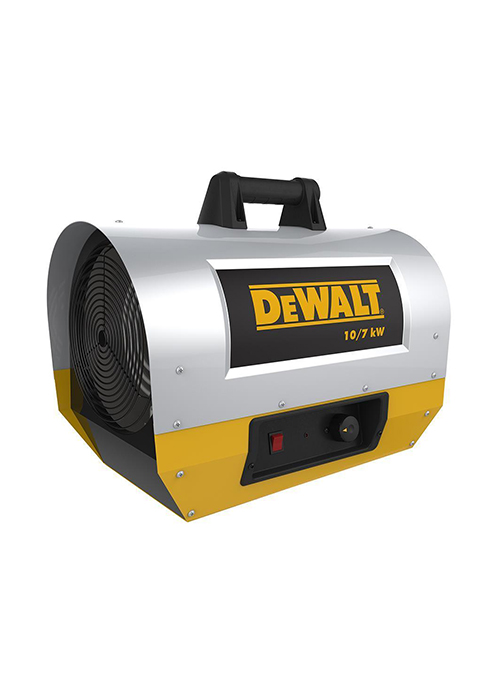

DXH1000TS 10/7 KW Forced Air Electric Construction Heater – DeWALT®

The thermostatically controlled DXH1000TS Electric heater operates at 10,000 watts on a 240v single phase circuit. As a convenience, this heater can also be used at 7000 watts depending on which size circuit is available on your particular jobsite. Constructed with dual coil supports oversized ergonomic handle and very durable jobsite construction.


  • Two stage operation – Connects to either a 50A or 30A breaker
  • Burner coils are supported at both the top and bottom to reduce transport noise and provide extra support for increased coil life.
  • Recessed controls provide protection for switches and knobs.
  • Equipped with a 25°F-95°F thermostat. The heating element cycles on and off to maintain the set temperature.
  • Designed and certified as an unattended source of jobsite heat.




More Information

DeWalt DXH1000TS Brochure



Item/Model DXH1000TS
Minimum Breaker Required 2-pole 50A @ 10kw / 2-pole 30A @ 7kw
Output (CFM) 350 CFM
Phase Single
Watts 10,000W
Heater Type Electric
Output (BTU/HR) 34,121 / 23,884
Output (KW) 10kw / 7kw
System 240V
Weight 35lbs
