C85-ACW Mini Loader and Dumper -Cormidi™

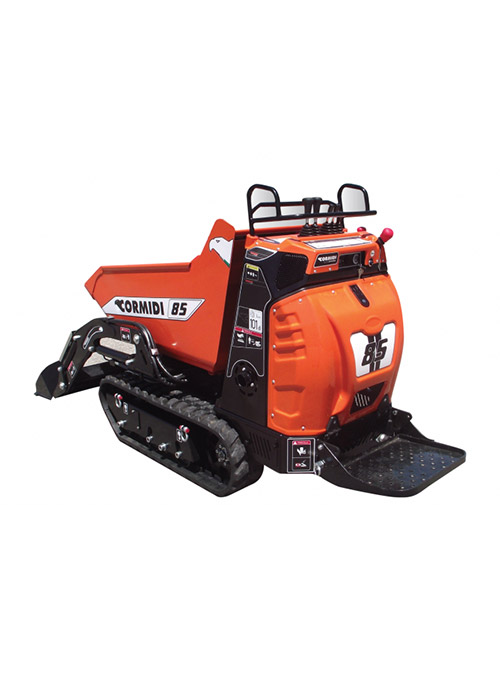

The Cormidi C85 is a 810 mm wide, 800kg tracked carrier, complete with a high tip height of 1.5 meters and oscillating rocking rollers providing a fast, efficient and safe way to transport dirt and other bulk materials on and off job sites. Featuring Hydrostatic Transmission, these machines are easy to use and low maintenance. Cormidi Dumpers can be used with an excavator or loader.



Request a Quote



cormidi logo

More Information

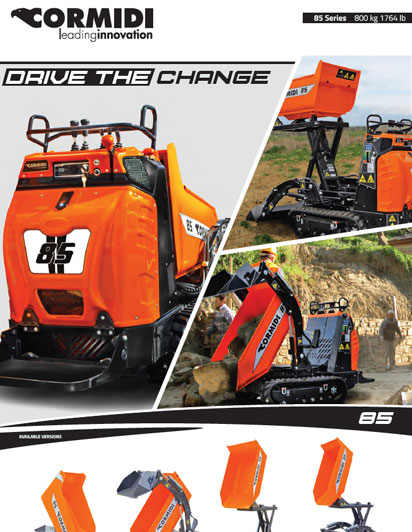

Cormidi C85 FeaturesCormidi C85 Specs

Specifications

Engine
Engine Model Honda Gx 390 13 hp



Transmission
Type Hydrostatic
Hydraulic Pump 2 variable pistons pumps
2x variable displ.



Tracks
Standard Track Width 180 mm (7.1 in)
Rocking Rollers Yes
Rollers 2



Hydraulic System
Hydraulic Pump Gear pump
Flow Std 1 x 15.8 l/min | (1 x 4.2 gpm)
Hi-flow 1 x 22 l/min | (1 x 5.8 gpm)
Max Pressure 150 bar | (2180 psi)



Performance and Dimensions
Max. Travel Speed 6 kmh / 3.7 mph
Operatve weight 800 kg (1762 LB)
Dry Weight 540 to 750 kg
Skip capacity 0.28 m³ to 0.45 m³
Parking brake Yes
