580N Backhoe – Case Construction™

The best has gotten better. Designed with our exclusive over-center backhoe design, the 580N helps reduce material spillage during roading. And for even greater comfort, choose the Ride Control or speed selectable Auto-Ride Control (4WD ONLY) options. Operators can also customize their forward/reverse transitions with the industry-exclusive SmartClutch modulation. Side-mounted, high-intensity, flex lights provide superior jobsite visibility at night and a new universal backhoe coupler option fits Cat® and John Deere attachments for expanded versatility. Plus, SiteWatch™ comes standard to help track, manage and optimize machine performance.

CASE chose an SCR (Selective Catalytic Reduction) Tier 4 Final solution to meet emissions regulations without sacrificing strength. That’s because SCR is an after-treatment system. It lets the engine breathe easier and run at peak performance, which translates to maximum power. Plus, SCR is simple. No new filters. Just pour a little DEF (Diesel Exhaust Fluid) and go. Additional fuel efficiency options include auto-idle, auto-shutdown and ECO-mode, which provides full power to the backhoe while in neutral.

Operators will be able to easily communicate to their spotter and enjoy superior cross-ventilation in a large cab with rear-quarter windows that open. Floor-to-ceiling glass provides excellent visibility to trenches and spoil piles. Making sure every operator is comfortable, CASE offers their traditional foot swing control, two-lever controls, or pilot controls for operating the backhoe. The CASE pilot controls are the most ergonomic in the industry featuring unlimited adjustments fore/aft, tilt in/out, and full surface adjustable wrist rests. The fully integrated loader control lever puts operation at the operator’s fingertips for faster response times and our exclusive Comfort Steer™ option cuts lock-to-lock steering wheel rotations in half to help reduce operator fatigue when loading, stockpiling and backfilling.



Categories: ,
case construction

More Information

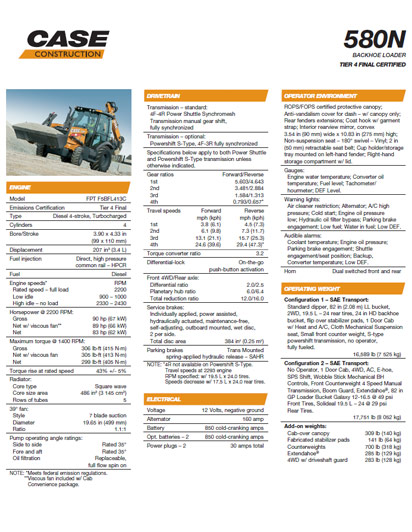

Case 580N BackhoeCase 580N Backhoe


Emission RatingTier 4 Final
Engine make / modelFPT F5BFL413C
Net Power – hp (kW)83 (62)
Rated rpm – rpm2200
Max speed – mph (kph)24.6 (39.6)
Transmission TypePowershuttle


Working Ranges
Max. Dig Depth – ft/in (mm)10 ft 0 in (3050)
Dig radius at groundline – ft/in (mm)17 ft 1 in (5200)
Dump Height – ft/in (mm)11 ft 5 in (3490)


Hydraulic System
Main Pump TypeGear Type Pump
Backhoe Flow – gallons (US) / min (lt/min)28.5 (108)


Lift Capacity to Full Height – lbs (kg)6803 (3086)
Breakout force – lbf (kN)9506 (42.3)
Loader Bucket Heaped Capacity – yd³ (m³)1.03 (0.79)


Fixed Length Dipper Stick
Dig Depth 2ft (0.61m) Flat Bottom – ft/in (mm)14 ft 8 in (4460)
Bucket digging force – lbf (kN)11,517 (51.2)
Dipper stick digging force – lbf (kN)6710 (29.5)
Dipperstick Lift Capacity @ 12′ Height – lbs (kg)4343 (1970)
Transport Height – ft/in (mm)10 ft 10 in (3300)


Transport Length – ft/in (mm)23 ft 5 in (7140)
Transport Width – ft/in (mm)6 ft 10 in (2067)
Transport Height – ft/in (mm)10 ft 10 in (3300)
Height To Top Of Cab – ft/in (mm)8 ft 11 in (2720)
Wheelbase 4WD – ft/in (mm)7 ft  (2130)
Turning Radius at curb, 4WD brakes applied – ft/in (mm)11 ft 4 in (3450)
Operating Weight, 4WD – lbs (kg)16,589 (7525)
Fuel Tank – gallons (US) (ltr)35 (132)
