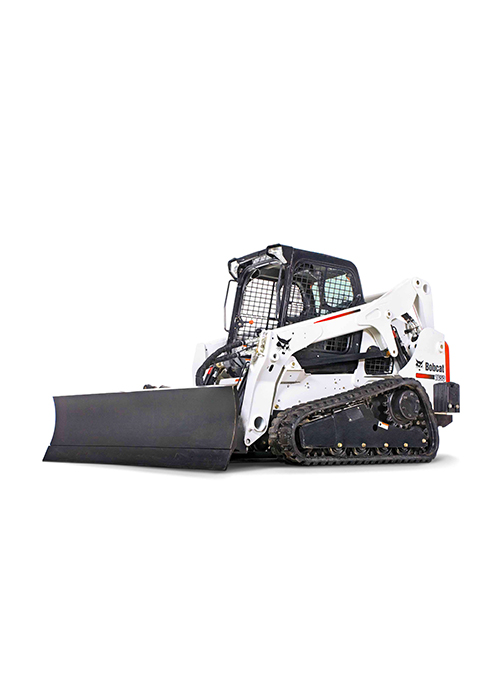

T650 – Bobcat™

Unload and place pallets of materials more easily with the vertical-lift-path Bobcat® T650. Combining power, lift and reach, vertical lift path models handle heavy materials and clear tall truck boxes. The Tier 4 engine delivers powerful performance. Unmatched power to help you push through your toughest jobs. Benefit from industry-leading breakout force, rated operating capacities, faster cycle times and quicker turns.





bobcat logo

More Information

Call for Details.

Specifications

Engine
Engine CoolingLiquid
Emissions Tier (EPA)Tier 4
Engine FuelDiesel
Horsepower74 HP
Turbocharged EngineYes



Performance
Rated Operating Capacity (SAE)2570 lbs
Tipping Load7343 lbs
Operating Weight9320 lbs
Travel Speed6.6 mph
Travel Speed (2-speed option)10.7 mph



Capacities
Fuel Tank43.9 gal



Hydraulic System
System Relief @ Quick Couplers3500 psi
Auxiliary Std Flow23 GPM
Auxiliary High Flow30.5 GPM



Dimension
Length108.4 in
Length without Attachment108.4 in
Length with Standard Bucket136.8 in
Width72.9 in
Width (with bucket)74 in
Height81.3 in
Height with Operator Cab81.3 in
Height to Bucket Hinge Pin124 in
Reach @ Maximum Height34.2 in
Turning Radius87.7 in
Length of Track on Ground58.5 in
Track Width12.6 in
