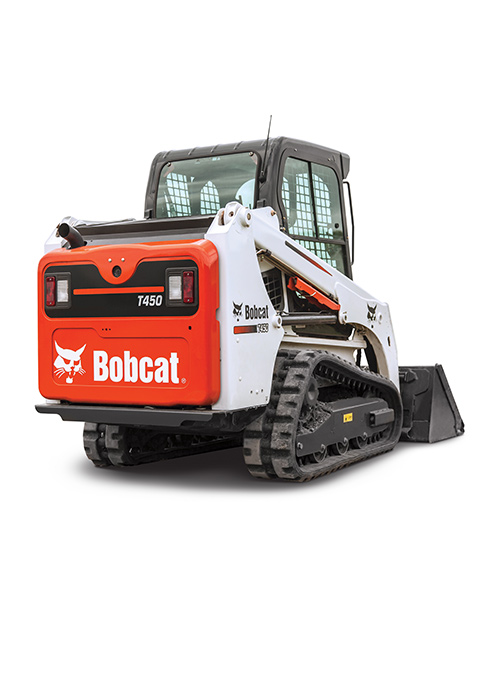

T450 – Bobcat™

Maneuver around tight worksites with the Bobcat® T450 compact track loader. The radius lift path excels at jobs with mid-range working heights such as dumping over walls, backfilling or unloading flatbed trucks. A powerful Tier 4 engine makes the T450 an impressive performer. Unmatched power to help you push through your toughest jobs. Benefit from industry-leading breakout force, rated operating capacities, faster cycle times and quicker turns.

Request a Quote



bobcat logo

More Information

Call for Details.

Specifications

Engine T450
Engine Cooling Liquid
Emissions Tier (EPA) Tier 4
Engine Fuel Diesel
Horsepower 61.1 HP
Turbocharged Engine Yes



Performance T450
Rated Operating Capacity (SAE) 1400 lbs
Operating Capacity (50% of Tip) 2000 lbs
Tipping Load 4000 lbs
Operating Weight 6148 lbs
Travel Speed 7.3 mph
Travel Speed (2-speed option) 11
Ground Presssure (Rubber) 4.7 psi



Capacities T450
Fuel Tank 17.3 gal



Hydraulic System T450
System Relief @ Quick Couplers 3300 psi
Auxiliary Std Flow 16.7 GPM
Auxiliary High Flow N/A



Dimension T450
Length 98.4 in
Length without Attachment 98.4 in
Length with Standard Bucket 126.6 in
Width 55 in
Width (with bucket) 56 in
Height 77.8 in
Height with Operator Cab 77.8 in
Height to Bucket Hinge Pin 109.5 in
Reach @ Maximum Height 23.5 in
Turning Radius 77.9 in
Length of track on ground 50.2 in
Track Width 11.8 in
