SX150 Telescopic Boom – Genie®

The SX-150 offers uncompromising productivity and industry-leading capacity through the full working envelope. This Super Boom is a fit for the most extreme construction, maintenance, telecommunications, gas and oil refineries, chemical maintenance, and large utility applications.
  • Designed to be productive, reliable and easy to transport
  • Features a working envelope ideal for the most extreme access jobs with a vertical reach of 152 ft (46.33 m) and horizontal reach of 80 ft (24.4 m)
  • 10 ft (3.05 m) rotating jib positions workers and gear exactly where they are needed
  • Standard 8 ft (2.44 m) self-leveling platform with an unrestricted capacity of 750 lb (340 kg)
  • Hydraulic platform rotation of 160°
  • Newly designed X-chassis extends and retracts to provide both stability on the job and a narrow profile for transport
  • Easily transported on a truck with no over width or over height permits required
  • Drive enable at full height



Genie Logo

More Information

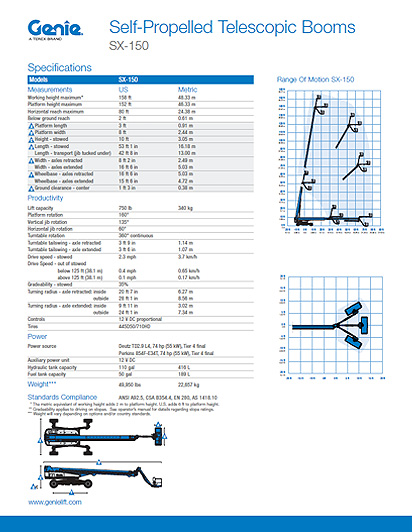

SX150 Genie Telescopic Boom PDF

Specifications

SX-150
Working Height*158 ft (48.33 m)
Platform Height152 ft (46.33 m)
Horizontal Reach80 ft (24.38 m)
Below Ground Reach2 ft (0.61 m)
Lift Capacity750 lb (340 kg)

*Imperial measurements of working height add 6 ft to platform height. The metric equivalent adds 2 m to platform height.
