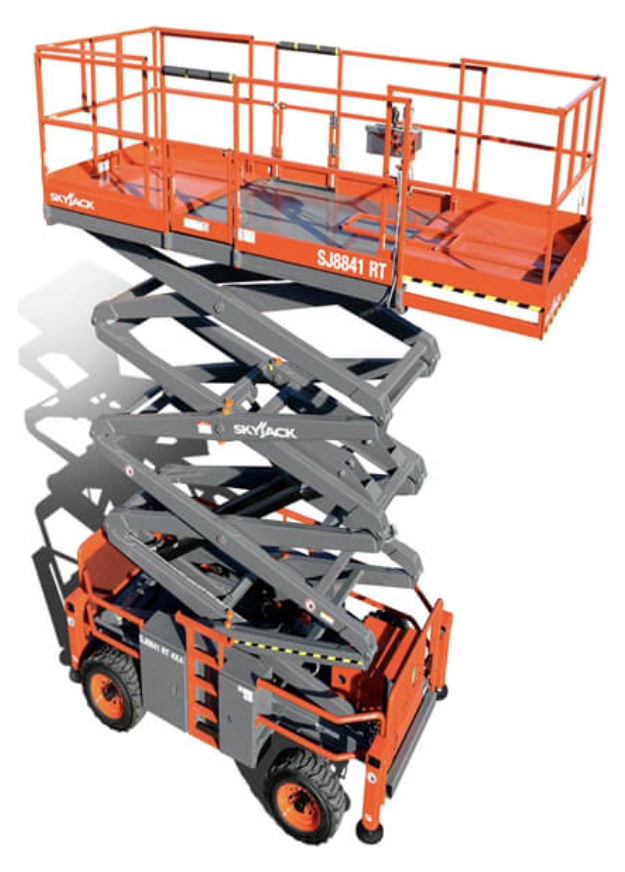

SJ8841 Rough Terrain Scissor Lift – Skyjack™

Skyjack Full-Size Rough Terrain Scissor Lifts deliver huge platforms, soaring work heights and heavy duty capacities—all in one package! The SJ8831 RT and SJ8841 RT feature working heights of 11.45 m and 14.50m respectively. Both models are drivable at full height, with capacities ranging to 909 kg allowing for maximized productivity.

As with every Skyjack model, these units use an analog based control
system, featuring Skyjack standard colour coded and numbered wiring, for ease of troubleshooting.



Request a Quote



skyjack logo

More Information

SJ8841

Specifications

A Work Height 14.50 m
B Raised Platform Height 12.50 m
C Lowered Platform Height 1.75 m
D Overall Width 2.20 m
E Overall Length 3.53 m
F Stowed Height (Rails Up) 2.90 m
G Stowed Height (Rails Down) 2.22 m
H Platform Width (Inside Dimension) 1.70 m
Platform Length Stowed (Inside Dimension) 3.40 m
I Platform Length Extended (Inside Dimension) 5.70 m
Ground Clearance 0.20 m
Wheelbase 2.27 m
Weight 6173 kg
Gradeability 30%
Turning Radius (Inside) 4.01 m
Turning Radius (Outside) 6.30 m
Lift Time (With Rated Load 71 sec
Drive Speed (Stowed) 4.5 km/h
Drive Speed (Raised) 0.4 km/h
Maximum Drive Height Full
Capacity (Overall) 909 kg
Maximum # of Persons 5
