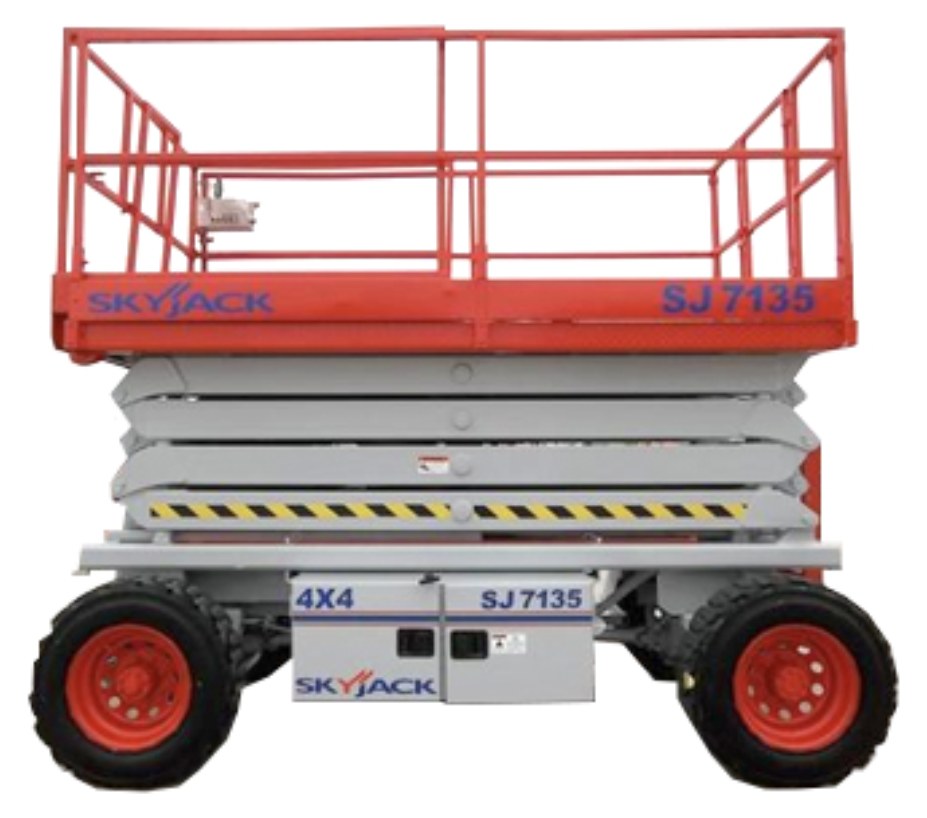

SJ7135 Rough Terrain Scissor Lift – Skyjack™

Combining solid and powerful design elements to meet the demands of the most challenging job site environments, the SJ 7135 comes equipped with Skyjack unique axle based 4WD system which features a “Detroit Locker” type rear differential and limited slip front differential for unmatched terrainability. With a working height of 41’ and capacity of 1,000 lbs, the SJ 7135 is drivable at full height, and features 30% gradeability.

A standard 4.5’ roll out extension deck adds to the already generous platform size, giving a combined 75 square feet of platform space. Utilizing Skyjack standard color coded and numbered wiring system with analog based controls ensures that the SJ 7135 will maintain its industry leading life cycle value.





skyjack logo

More Information

Skyjack sj7127 sj7135

Specifications

Work Height41’ (12.5 m)
Raised Platform Height35’ (10.7 m)
Lowered Platform Height67.5” (1.7 m)
Overall Width71” (1.8 m)
Overall Length127” (3.2 m)
Stowed Height (Rails Up)112.5” (2.9 m)
Stowed Height (Rails Down)84” (2.1 m)
Platform Width (Inside Dimension)64” (1.6 m)
Platform Length (Inside Dimension)116.5” (3.0 m)
Deck Extension4.5’ (1.4 m)
Wheelbase95” (2.4 m)
Ground Clearance8.5” (0.2 m)
Weight8,850 lbs (4,014 kg)
Gradeability30%
Turning Radius (Inside)109” (2.8 m)
Turning Radius – Outside207” (5.3 m)
Lift Time (With Rated Load)41 sec
Drive Speed (Stowed)3 mph (4.8 km/h)
Drive Speed (Raised)0.35 mph (0.6 km/h)
Maximum Drive HeightFull Height
Capacity (Overall)1,000 lbs (454 kg)
Maximum # of Persons4
