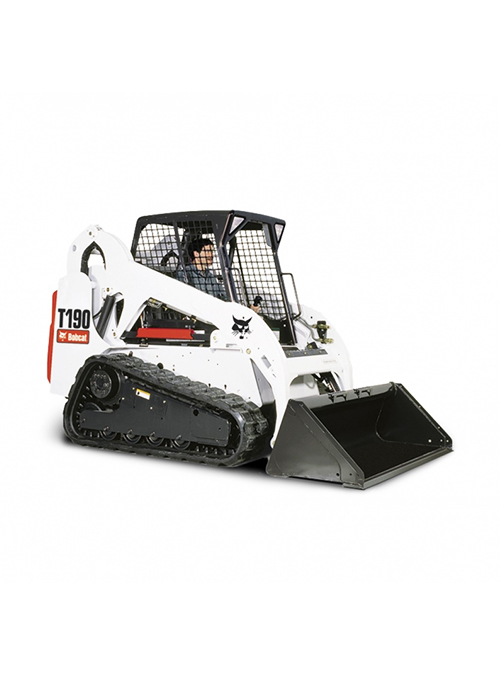

With its vertical lift, the K-Series T190 is ideal for lift and carry jobs and for loading trucks. Plus, it maneuvers easily when space is limited. Choose standard narrow tracks for best floatation on sand and turf. Other options include shock-absorbing ride control for a smoother ride, enclosed heated and air conditioned cab and the Power Bob-Tach™ system for easy attachment changes.
Call for Details.
| Engine | |
|---|---|
| Engine Cooling | Liquid |
| Emissions Tier (EPA) | Interim Tier 4 |
| Engine Fuel | Diesel |
| Horsepower | 41.8 HP |
| Turbocharged Engine | No |
| Performance | |
|---|---|
| Rated Operating Capacity (SAE) | 1100 lbs |
| Operating Capacity (50% of Tip) | 1595 lbs |
| Tipping Load | 3190 lbs |
| Operating Weight | 5202 lbs |
| Travel Speed | 5.2 mph |
| Travel Speed (2-speed option) | 8.4 mph |
| Ground Presssure (Rubber) | 4.6 psi |
| Capacities | |
|---|---|
| Fuel Tank | 11.9 gal |
| Hydraulic System | |
|---|---|
| System Relief @ Quick Couplers | 3000 psi |
| Auxiliary Std Flow | 12.5 GPM |
| Auxiliary High Flow | N/A |
| Dimension | |
|---|---|
| Length | 89.1 in |
| Length without Attachment | 89.1 in |
| Length with Standard Bucket | 117 in |
| Width | 47.2 in |
| Width (with bucket) | 50 in |
| Height | 74.1 in |
| Height with Operator Cab | 74.1 in |
| Height to Bucket Hinge Pin | 103.7 in |
| Reach @ Maximum Height | 22.8 in |
| Turning Radius | 72.9 in |
| Length of track on ground | 51.1 in |
| Track Width | 9.8 in |
| Track Width – Optional | N/A |
