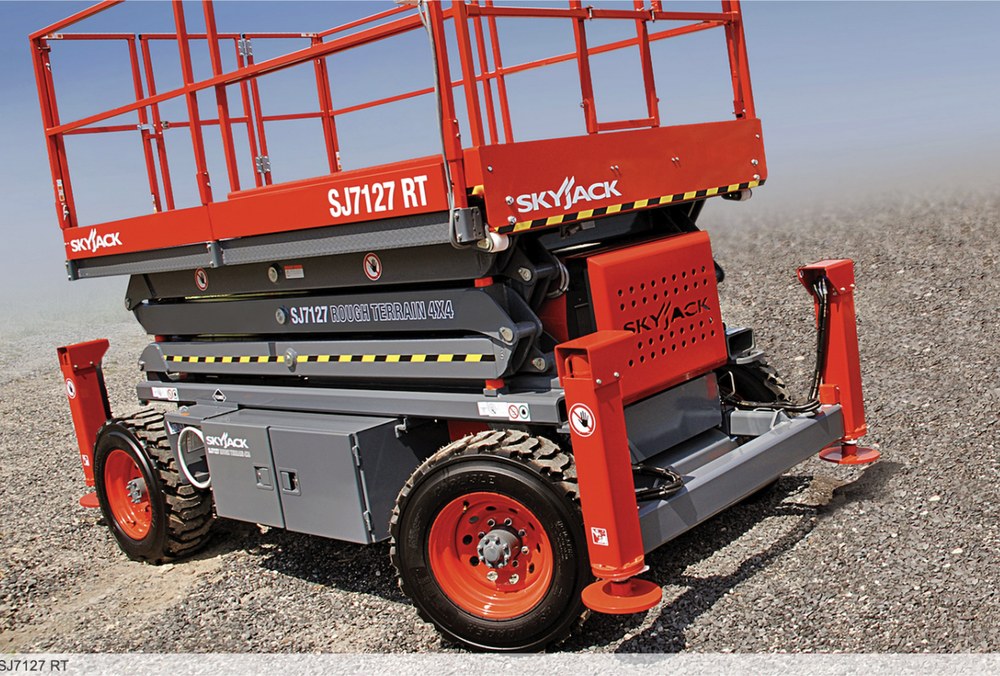

SJ7127 Rough Terrain Scissor Lift – Skyjack™

The SJ7127 RT combines solid and powerful design elements to meet the demands of the most challenging job site environments. With a working height of 33’ and a capacity of 1,500 lbs, the SJ7127 RT features a standard 4.5’ roll out extension deck adds to the already generous platform size, giving a combined 75 square feet of platform space.

Drivable at full height, and featuring 30% gradeability, the SJ7127 RT comes equipped with Skyjack’s exclusive axle based 4WD system which features a “Detroit Locker” type rear differential and limited slip front differential for unmatched terrainability. Consistent with Skyjack’s robust and reliable design features, the SJ7127 RT utilizes Skyjack’s standard color coded and numbered wiring system with analog based controls.





skyjack logo

More Information

Skyjack sj7127 sj7135

Specifications

Work Height33’ (10.1 m)
Raised Platform Height27’ (8.2 m)
Lowered Platform Height60.5” (1.5 m)
Overall Width71” (1.8 m)
Overall Length127” (3.2 m)
Stowed Height (Rails Up)105.5” (2.7 m)
Stowed Height (Rails Down)77” (2.0 m)
Platform Width (Inside Dimension)64” (1.6 m)
Platform Length (Inside Dimension)116.5” (3.0 m)
Deck Extension4.5’ (1.4 m)
Wheelbase95” (2.4 m)
Ground Clearance8.5” (0.2 m)
Weight8,420 lbs (3,819 kg)
Gradeability30%
Turning Radius (Inside)109” (2.8 m)
Turning Radius – Outside207” (5.3 m)
Lift Time (With Rated Load)43 sec
Drive Speed (Stowed)3 mph (4.8 km/h)
Drive Speed (Raised)0.35 mph (0.6 km/h)
Maximum Drive HeightFull Height
Capacity (Overall)1,500 lbs (680 kg)
Maximum # of Persons5
