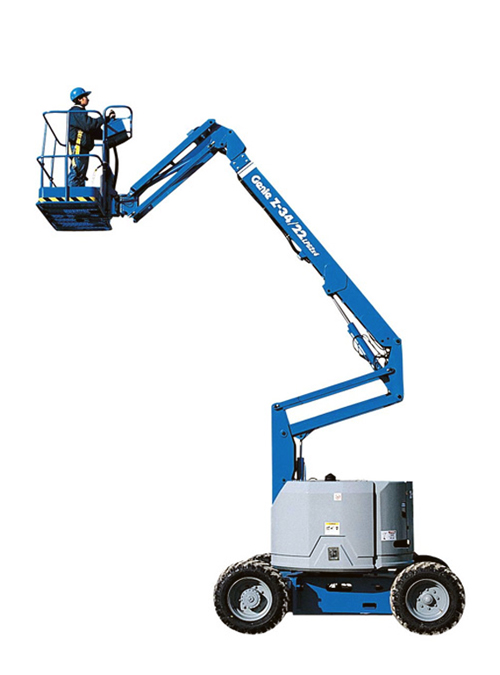

Z34/22 Electric Articulating Boom – Genie®

Genie Electric articulating boom lift machines offer quiet, emission-free operation in the most sensitive work environments.

  • Ideal for confined work spaces at only 58 in (1.47 m) wide with zero tailswing
  • Maximum drive performance of 35% gradeability and 4.0 mph travel speed
  • Motor controller eliminates the need for forward/reverse contactors or speed sensors, reducing complexity and improving reliability
  • Rolls through standard double doorways
  • 4 ft (1.22 m) jib boom has 139° range of motion allowing positioning above or below horizontal
  • Self-leveling platform features 180° powered horizontal rotation for precise positioning and easy operation
  • Compact storage length of 13 ft 9 in (4.2 m) and width of 58 in (1.47 m)
  • Easy ascent and descent along a vertical plane without retracting or extending the boom
  • Automatic hill and ramp braking



Genie Logo

More Information

Genie Z34/22  Genie Z30/20N


Working Height*40 ft 6 in (12.52 m)
Width5 ft 8 in (1.73 m)
Horizontal Reach22 ft 3 in (6.78 m)
Up & Over Clearance15 ft (4.57 m)
Lift Capacity500 lbs (227 kg)
